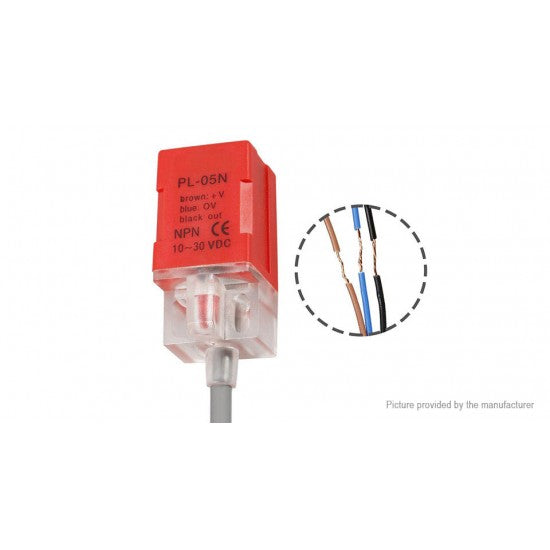

PL-05NB Inductive Sensor
Power supply reversal connection protection , short-circuit protection , can directly connect with PLCEconomic and simple operationLong...
- Rs. 500.00
- Rs. 500.00
- Unit price
- per
Power supply reversal connection protection , short-circuit protection , can directly connect with PLC
Economic and simple operation
Long service life, high reliability and strong resistance property to environment
Red LED indicates that it’s available to detect the sensor operating state.
IP67 protection structure (IEC specification)
Characteristic parameter:
Type: NPN NC
Mounting way: Non-screen shield type
Delay distance: 10% below of the detection distance
Detection distance: 5mm±10%
Set distance: 0-4mm
Supply voltage: DC 10-30V
Consumption current: Below 13mA
Control output : 300 mA Below
Loop protection: Reversal connection protection, surge absorption, load short-circuit protection
Ambient temperature & humidity: -30~+65 °C, 35~95% RH
Insulation impedance: Above 50 MΩ between charging part and housing
Withstand voltage: AC 1000V 50/60Hz 1min between charging part and housing
Temperature influence: Temperature range -30~+65 °C , at +23 °C , ±15% detection distance;
temperature range -25~+60 °C , at +23 °C , ±10% detection distanc
Voltage influence : Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Protection structure: IP67 (IEC specification)
Material: ABS
Wire length:1M
Economic and simple operation
Long service life, high reliability and strong resistance property to environment
Red LED indicates that it’s available to detect the sensor operating state.
IP67 protection structure (IEC specification)
Characteristic parameter:
Type: NPN NC
Mounting way: Non-screen shield type
Delay distance: 10% below of the detection distance
Detection distance: 5mm±10%
Set distance: 0-4mm
Supply voltage: DC 10-30V
Consumption current: Below 13mA
Control output : 300 mA Below
Loop protection: Reversal connection protection, surge absorption, load short-circuit protection
Ambient temperature & humidity: -30~+65 °C, 35~95% RH
Insulation impedance: Above 50 MΩ between charging part and housing
Withstand voltage: AC 1000V 50/60Hz 1min between charging part and housing
Temperature influence: Temperature range -30~+65 °C , at +23 °C , ±15% detection distance;
temperature range -25~+60 °C , at +23 °C , ±10% detection distanc
Voltage influence : Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Protection structure: IP67 (IEC specification)
Material: ABS
Wire length:1M
